产品规格
型号：EN55335
功率：5W*3、7W*3、10W*3、12W*3
光束角：15° 24° 36° 50°
散热器：铝
表面处理：喷漆

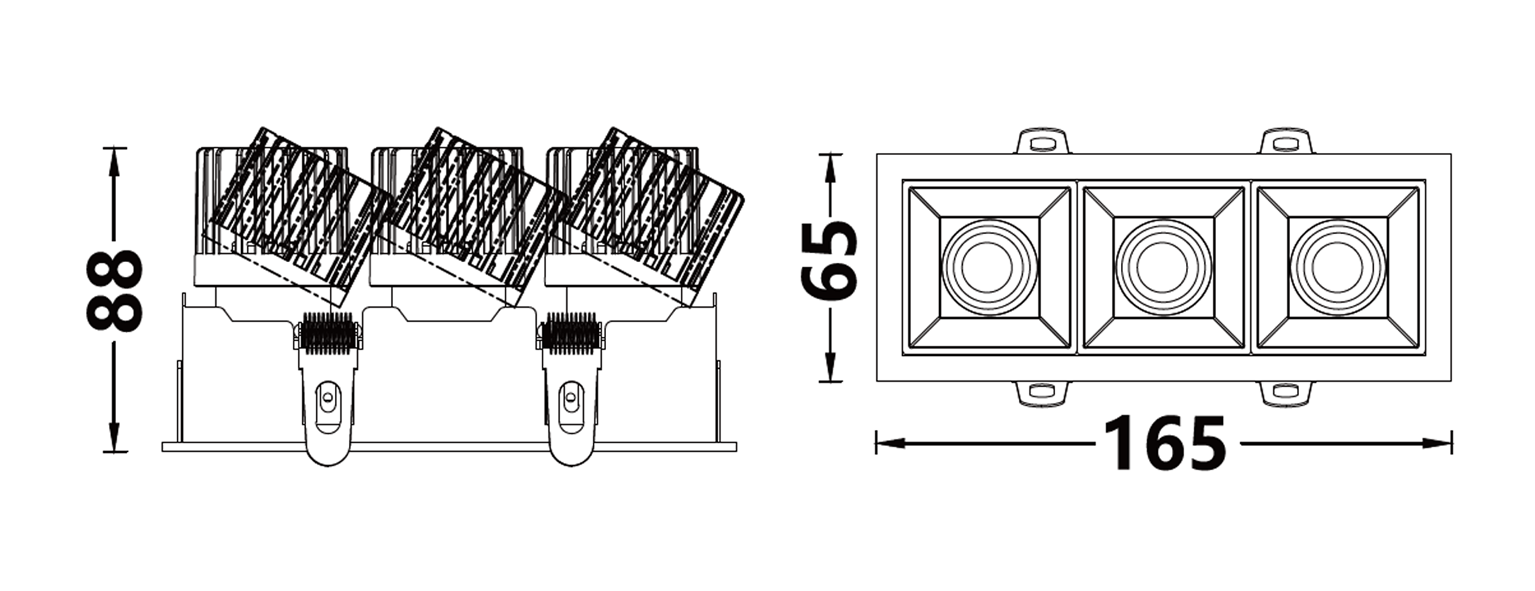

尺寸：W65*165mm H88mm
开孔：160*61mm
功率：5W*3、7W*3、10W*3、12W*3
光束角：15° 24° 36° 50°
散热器：铝
表面处理：喷漆
尺寸：W65*165mm H88mm
开孔：160*61mm
可选配件

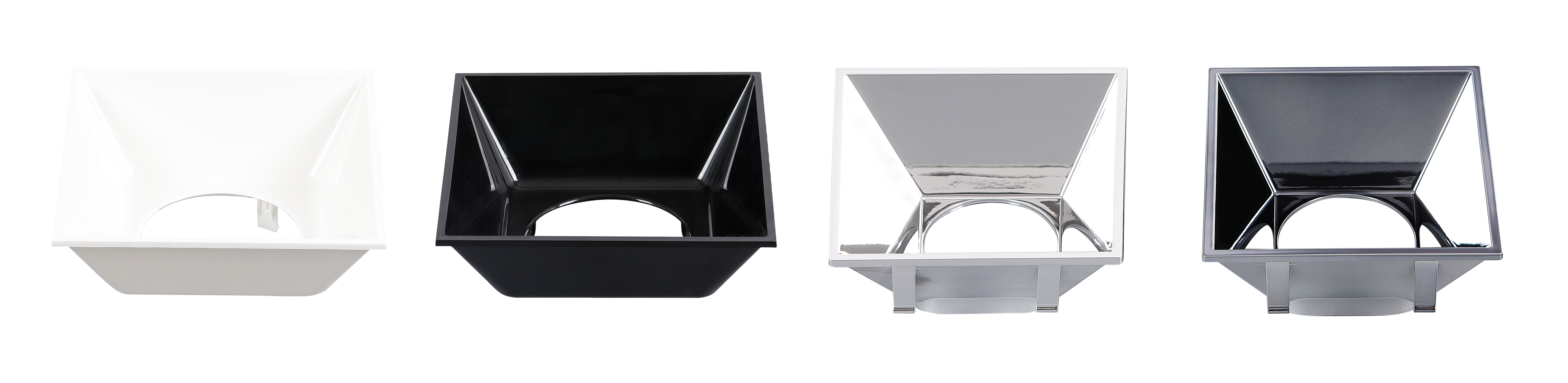

可选高效防眩罩
产品参数
| 产品名称 | 型号 | 功率 | 电压/电流 | 显色性 | 光束角 | 色温 | 光强 | 照度表 | IES | 说明书 |
|---|---|---|---|---|---|---|---|---|---|---|
| 嵌⼊式可调格栅筒灯 | EN55335-005*3 | 5W*3 | 37V/120mA | Ra>90 | 15° | 2700K |  | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-005*3 | 5W*3 | 37V/120mA | Ra>90 | 15° | 3000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-005*3 | 5W*3 | 37V/120mA | Ra>90 | 15° | 4000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-005*3 | 5W*3 | 37V/120mA | Ra>90 | 24° | 2700K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-005*3 | 5W*3 | 37V/120mA | Ra>90 | 24° | 3000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-005*3 | 5W*3 | 37V/120mA | Ra>90 | 24° | 4000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-005*3 | 5W*3 | 37V/120mA | Ra>90 | 36° | 2700K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-005*3 | 5W*3 | 37V/120mA | Ra>90 | 36° | 3000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-005*3 | 5W*3 | 37V/120mA | Ra>90 | 36° | 4000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-005*3 | 5W*3 | 37V/120mA | Ra>90 | 50° | 2700K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-005*3 | 5W*3 | 37V/120mA | Ra>90 | 50° | 3000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-005*3 | 5W*3 | 37V/120mA | Ra>90 | 50° | 4000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-007*3 | 7W*3 | 37V/150mA | Ra>90 | 15° | 2700K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-007*3 | 7W*3 | 37V/150mA | Ra>90 | 15° | 3000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-007*3 | 7W*3 | 37V/150mA | Ra>90 | 15° | 4000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-007*3 | 7W*3 | 37V/150mA | Ra>90 | 24° | 2700K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-007*3 | 7W*3 | 37V/150mA | Ra>90 | 24° | 3000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-007*3 | 7W*3 | 37V/150mA | Ra>90 | 24° | 4000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-007*3 | 7W*3 | 37V/150mA | Ra>90 | 36° | 2700K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-007*3 | 7W*3 | 37V/150mA | Ra>90 | 36° | 3000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-007*3 | 7W*3 | 37V/150mA | Ra>90 | 36° | 4000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-007*3 | 7W*3 | 37V/150mA | Ra>90 | 50° | 2700K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-007*3 | 7W*3 | 37V/150mA | Ra>90 | 50° | 3000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-007*3 | 7W*3 | 37V/150mA | Ra>90 | 50° | 4000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-010*3 | 10W*3 | 37V/250mA | Ra>90 | 15° | 2700K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-010*3 | 10W*3 | 37V/250mA | Ra>90 | 15° | 3000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-010*3 | 10W*3 | 37V/250mA | Ra>90 | 15° | 4000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-010*3 | 10W*3 | 37V/250mA | Ra>90 | 24° | 2700K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-010*3 | 10W*3 | 37V/250mA | Ra>90 | 24° | 3000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-010*3 | 10W*3 | 37V/250mA | Ra>90 | 24° | 4000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-010*3 | 10W*3 | 37V/250mA | Ra>90 | 36° | 2700K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-010*3 | 10W*3 | 37V/250mA | Ra>90 | 36° | 3000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-010*3 | 10W*3 | 37V/250mA | Ra>90 | 36° | 4000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-010*3 | 10W*3 | 37V/250mA | Ra>90 | 50° | 2700K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-010*3 | 10W*3 | 37V/250mA | Ra>90 | 50° | 3000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-010*3 | 10W*3 | 37V/250mA | Ra>90 | 50° | 4000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-012*3 | 12W*3 | 37V/300mA | Ra>90 | 15° | 2700K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-012*3 | 12W*3 | 37V/300mA | Ra>90 | 15° | 3000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-012*3 | 12W*3 | 37V/300mA | Ra>90 | 15° | 4000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-012*3 | 12W*3 | 37V/300mA | Ra>90 | 24° | 2700K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-012*3 | 12W*3 | 37V/300mA | Ra>90 | 24° | 3000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-012*3 | 12W*3 | 37V/300mA | Ra>90 | 24° | 4000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-012*3 | 12W*3 | 37V/300mA | Ra>90 | 36° | 2700K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-012*3 | 12W*3 | 37V/300mA | Ra>90 | 36° | 3000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-012*3 | 12W*3 | 37V/300mA | Ra>90 | 36° | 4000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-012*3 | 12W*3 | 37V/300mA | Ra>90 | 50° | 2700K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-012*3 | 12W*3 | 37V/300mA | Ra>90 | 50° | 3000K | | | | |
| 嵌⼊式可调格栅筒灯 | EN55335-012*3 | 12W*3 | 37V/300mA | Ra>90 | 50° | 4000K | | | |
