产品规格

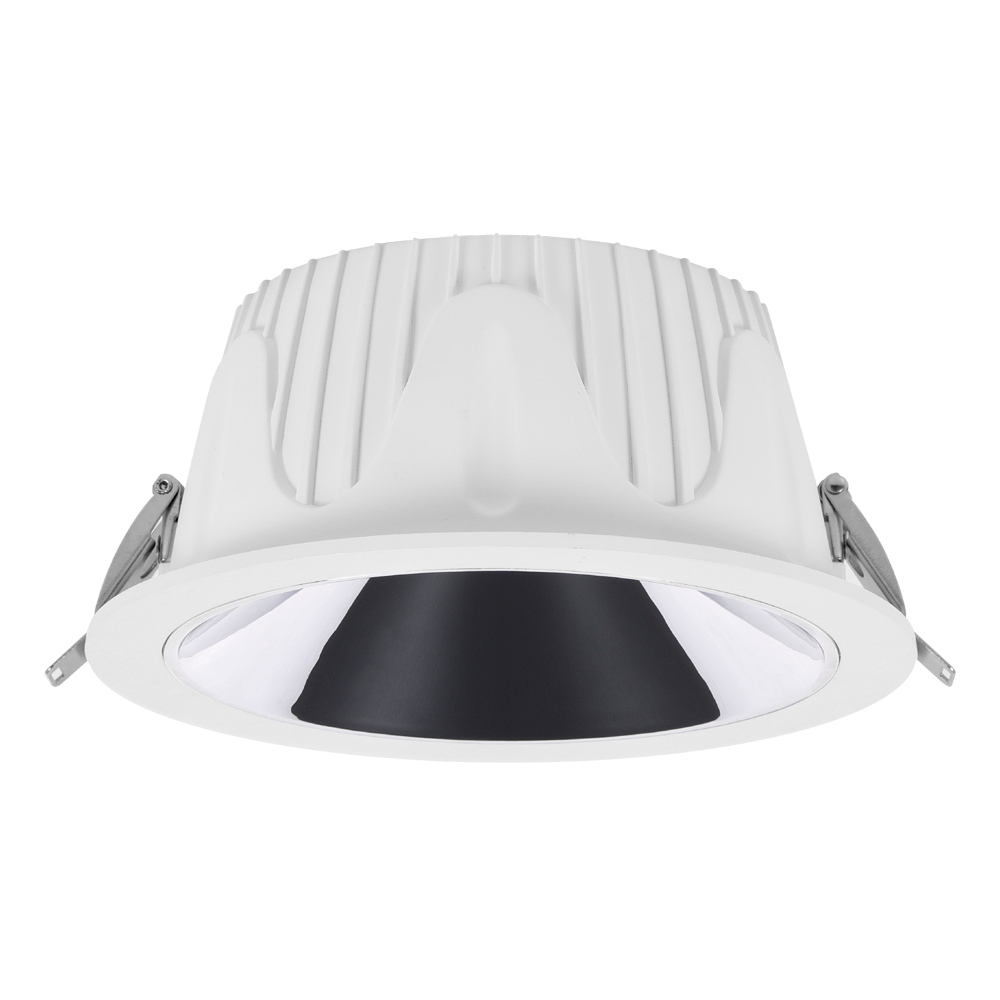

型号：EN34208
功率：10W、12W、15W、20W、25W、30W、35W、40W
光束角：75°
散热器：铝
表面处理：喷漆

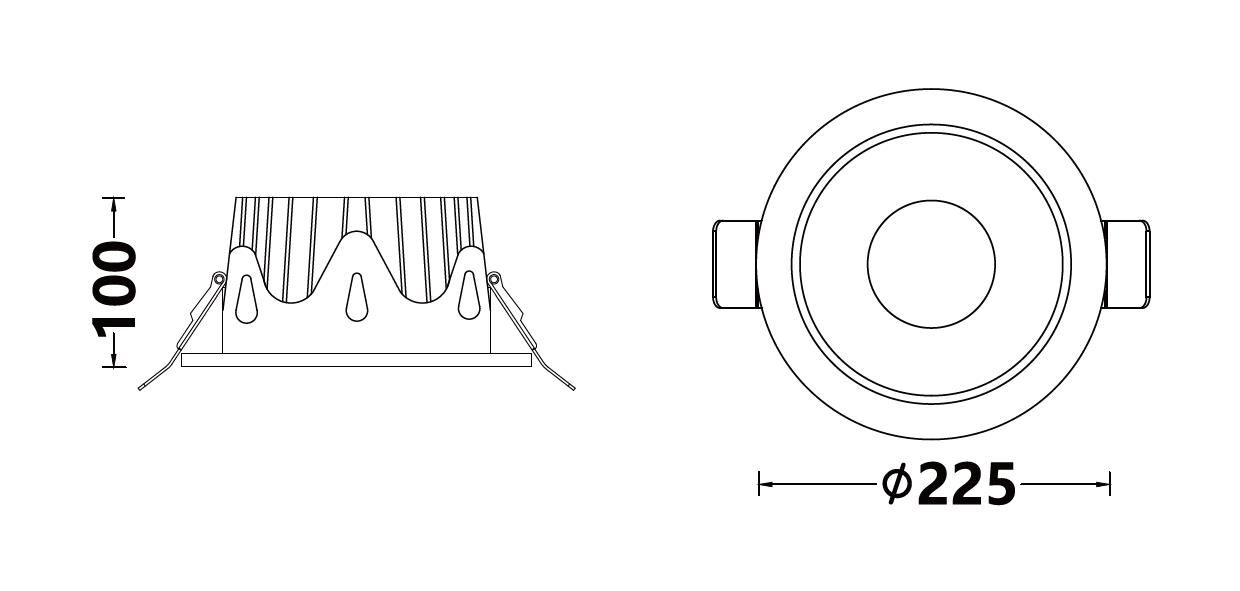

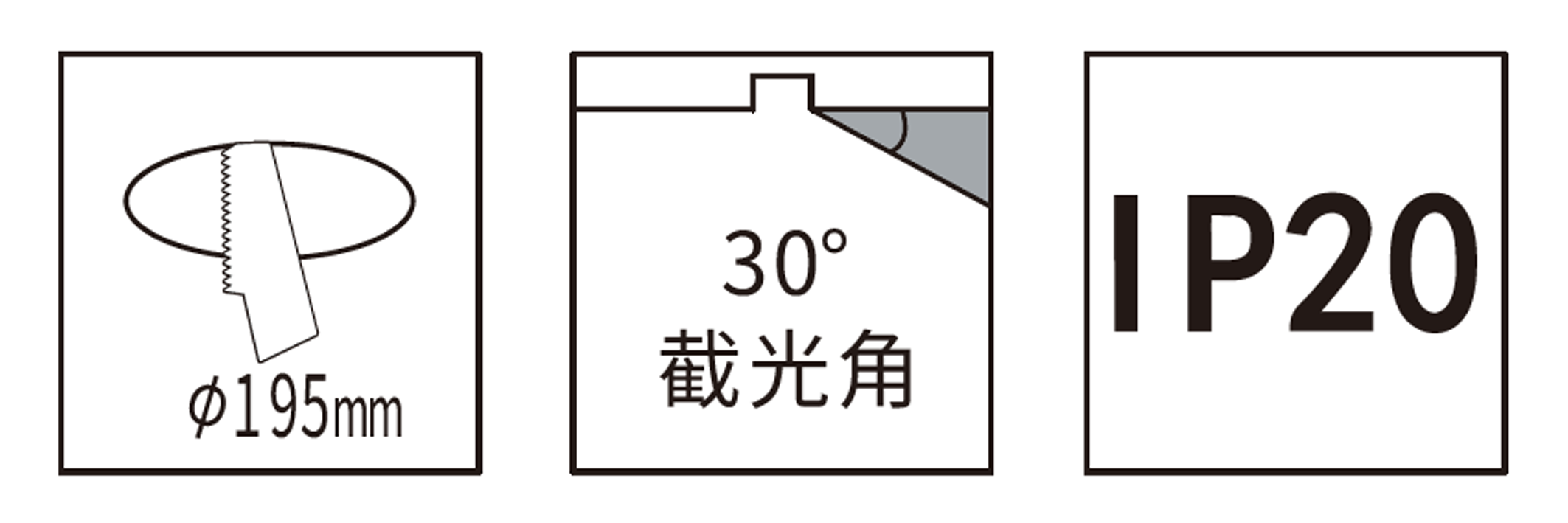

开孔：Φ195mm
功率：10W、12W、15W、20W、25W、30W、35W、40W
光束角：75°
散热器：铝
表面处理：喷漆
开孔：Φ195mm
可选配件
可选高效防眩罩
产品参数
| 产品名称 | 型号 | 功率 | 电压/电流 | 显色性 | 光束角 | 色温 | 光强 | 照度表 | IES | 说明书 |
|---|---|---|---|---|---|---|---|---|---|---|
| 嵌⼊式泛光筒灯 | EN34208-010 | 10W | 37V/250mA | Ra>90 | 75° | 2700K | 880CD |  | | |
| 嵌⼊式泛光筒灯 | EN34208-010 | 10W | 37V/250mA | Ra>90 | 75° | 3000K | 919CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-010 | 10W | 37V/250mA | Ra>90 | 75° | 4000K | 967CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-012 | 12W | 37V/300mA | Ra>90 | 75° | 2700K | 1056CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-012 | 12W | 37V/300mA | Ra>90 | 75° | 3000K | 1103CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-012 | 12W | 37V/300mA | Ra>90 | 75° | 4000K | 1161CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-015 | 15W | 37V/350mA | Ra>90 | 75° | 2700K | 1321CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-015 | 15W | 37V/350mA | Ra>90 | 75° | 3000K | 1379CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-015 | 15W | 37V/350mA | Ra>90 | 75° | 4000K | 1451CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-020 | 20W | 37V/500mA | Ra>90 | 75° | 2700K | 1761CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-020 | 20W | 37V/500mA | Ra>90 | 75° | 3000K | 1838CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-020 | 20W | 37V/500mA | Ra>90 | 75° | 4000K | 1935CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-025 | 25W | 37V/600mA | Ra>90 | 75° | 2700K | 2201CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-025 | 25W | 37V/600mA | Ra>90 | 75° | 3000K | 2298CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-025 | 25W | 37V/600mA | Ra>90 | 75° | 4000K | 2419CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-030 | 30W | 37V/700mA | Ra>90 | 75° | 2700K | 2641CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-030 | 30W | 37V/700mA | Ra>90 | 75° | 3000K | 2757CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-030 | 30W | 37V/700mA | Ra>90 | 75° | 4000K | 2902CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-035 | 35W | 37V/800mA | Ra>90 | 75° | 2700K | 3081CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-035 | 35W | 37V/800mA | Ra>90 | 75° | 3000K | 3217CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-035 | 35W | 37V/800mA | Ra>90 | 75° | 4000K | 3386CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-040 | 40W | 37V/900mA | Ra>90 | 75° | 2700K | 3522CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-040 | 40W | 37V/900mA | Ra>90 | 75° | 3000K | 3676CD | | | |
| 嵌⼊式泛光筒灯 | EN34208-040 | 40W | 37V/900mA | Ra>90 | 75° | 4000K | 3870CD | | | |
