产品规格
型号：ET35003
功率：5W、7W、10W、12W

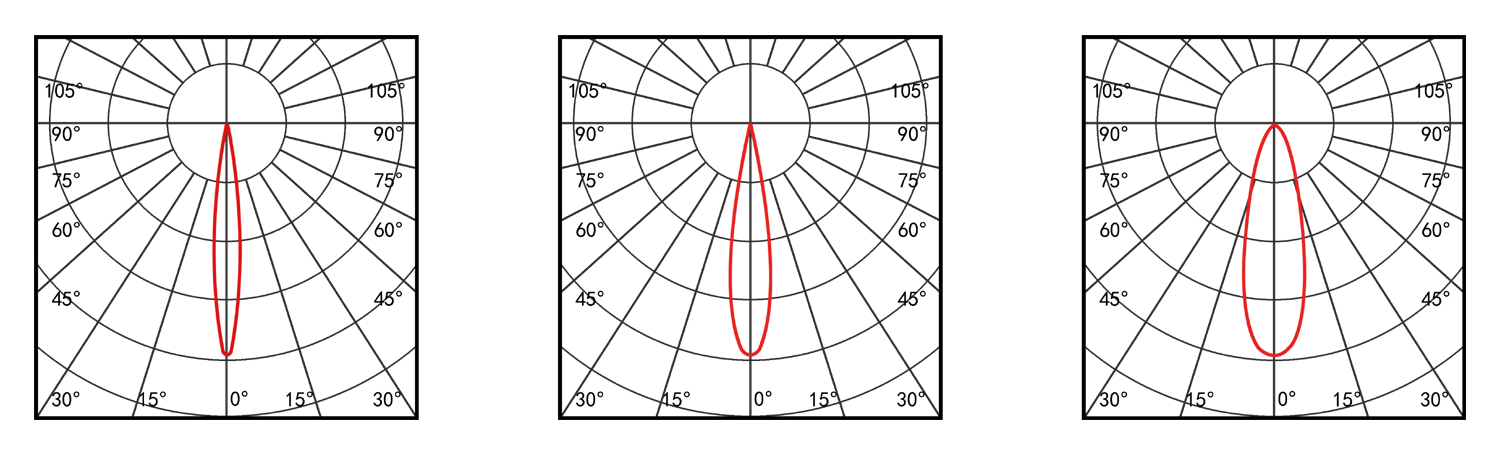

光束角：15° 24° 38°
散热器：铝
表面处理：喷漆

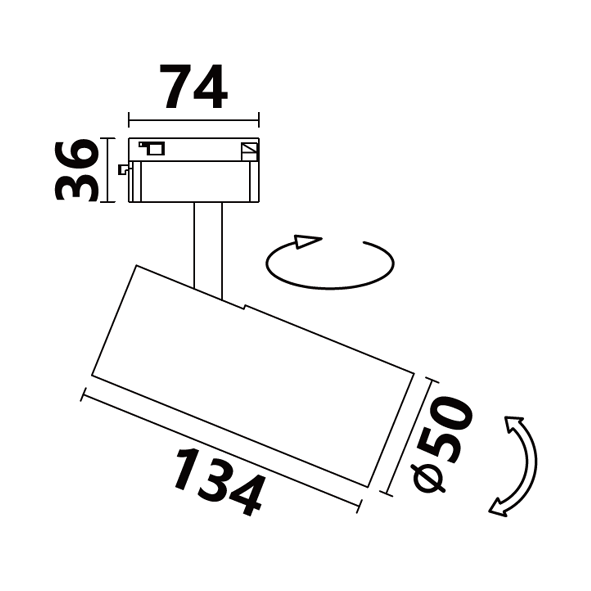

尺寸：Φ50mm
功率：5W、7W、10W、12W
光束角：15° 24° 38°
散热器：铝
表面处理：喷漆
尺寸：Φ50mm
可选配件
产品参数
| 产品名称 | 型号 | 功率 | 电压/电流 | 显色性 | 光束角 | 色温 | 光强 | 照度表 | IES | 说明书 |
|---|---|---|---|---|---|---|---|---|---|---|
| ⼀体轨道灯 | ET35003-005 | 5W | 37V/120mA | Ra>90 | 15° | 2700K | 2446CD |  | | |
| ⼀体轨道灯 | ET35003-005 | 5W | 37V/120mA | Ra>90 | 15° | 3000K | 2575CD | | | |
| ⼀体轨道灯 | ET35003-005 | 5W | 37V/120mA | Ra>90 | 15° | 4000K | 2710CD | | | |
| ⼀体轨道灯 | ET35003-005 | 5W | 37V/120mA | Ra>90 | 24° | 2700K | 2159CD | | | |
| ⼀体轨道灯 | ET35003-005 | 5W | 37V/120mA | Ra>90 | 24° | 3000K | 2272CD | | | |
| ⼀体轨道灯 | ET35003-005 | 5W | 37V/120mA | Ra>90 | 24° | 4000K | 2392CD | | | |
| ⼀体轨道灯 | ET35003-005 | 5W | 37V/120mA | Ra>90 | 38° | 2700K | 1107CD | | | |
| ⼀体轨道灯 | ET35003-005 | 5W | 37V/120mA | Ra>90 | 38° | 3000K | 1166CD | | | |
| ⼀体轨道灯 | ET35003-005 | 5W | 37V/120mA | Ra>90 | 38° | 4000K | 1227CD | | | |
| ⼀体轨道灯 | ET35003-007 | 7W | 37V/150mA | Ra>90 | 15° | 2700K | 3357CD | | | |
| ⼀体轨道灯 | ET35003-007 | 7W | 37V/150mA | Ra>90 | 15° | 3000K | 3534CD | | | |
| ⼀体轨道灯 | ET35003-007 | 7W | 37V/150mA | Ra>90 | 15° | 4000K | 3720CD | | | |
| ⼀体轨道灯 | ET35003-007 | 7W | 37V/150mA | Ra>90 | 24° | 2700K | 2963CD | | | |
| ⼀体轨道灯 | ET35003-007 | 7W | 37V/150mA | Ra>90 | 24° | 3000K | 3119CD | | | |
| ⼀体轨道灯 | ET35003-007 | 7W | 37V/150mA | Ra>90 | 24° | 4000K | 3283CD | | | |
| ⼀体轨道灯 | ET35003-007 | 7W | 37V/150mA | Ra>90 | 38° | 2700K | 1520CD | | | |
| ⼀体轨道灯 | ET35003-007 | 7W | 37V/150mA | Ra>90 | 38° | 3000K | 1600CD | | | |
| ⼀体轨道灯 | ET35003-007 | 7W | 37V/150mA | Ra>90 | 38° | 4000K | 1684CD | | | |
| ⼀体轨道灯 | ET35003-010 | 10W | 37V/220mA | Ra>90 | 15° | 2700K | 5039CD | | | |
| ⼀体轨道灯 | ET35003-010 | 10W | 37V/220mA | Ra>90 | 15° | 3000K | 5305CD | | | |
| ⼀体轨道灯 | ET35003-010 | 10W | 37V/220mA | Ra>90 | 15° | 4000K | 5584CD | | | |
| ⼀体轨道灯 | ET35003-010 | 10W | 37V/220mA | Ra>90 | 24° | 2700K | 4446CD | | | |
| ⼀体轨道灯 | ET35003-010 | 10W | 37V/220mA | Ra>90 | 24° | 3000K | 4680CD | | | |
| ⼀体轨道灯 | ET35003-010 | 10W | 37V/220mA | Ra>90 | 24° | 4000K | 4927CD | | | |
| ⼀体轨道灯 | ET35003-010 | 10W | 37V/220mA | Ra>90 | 38° | 2700K | 2282CD | | | |
| ⼀体轨道灯 | ET35003-010 | 10W | 37V/220mA | Ra>90 | 38° | 3000K | 2402CD | | | |
| ⼀体轨道灯 | ET35003-010 | 10W | 37V/220mA | Ra>90 | 38° | 4000K | 2528CD | | | |
| ⼀体轨道灯 | ET35003-012 | 12W | 37V/300mA | Ra>90 | 15° | 2700K | 5822CD | | | |
| ⼀体轨道灯 | ET35003-012 | 12W | 37V/300mA | Ra>90 | 15° | 3000K | 6129CD | | | |
| ⼀体轨道灯 | ET35003-012 | 12W | 37V/300mA | Ra>90 | 15° | 4000K | 6451CD | | | |
| ⼀体轨道灯 | ET35003-012 | 12W | 37V/300mA | Ra>90 | 24° | 2700K | 5137CD | | | |
| ⼀体轨道灯 | ET35003-012 | 12W | 37V/300mA | Ra>90 | 24° | 3000K | 5407CD | | | |
| ⼀体轨道灯 | ET35003-012 | 12W | 37V/300mA | Ra>90 | 24° | 4000K | 5692CD | | | |
| ⼀体轨道灯 | ET35003-012 | 12W | 37V/300mA | Ra>90 | 38° | 2700K | 2636CD | | | |
| ⼀体轨道灯 | ET35003-012 | 12W | 37V/300mA | Ra>90 | 38° | 3000K | 2775CD | | | |
| ⼀体轨道灯 | ET35003-012 | 12W | 37V/300mA | Ra>90 | 38° | 4000K | 2921CD | | | |
