产品规格
型号：EN36008
功率：1W、3W、5W
光束角：15° 24° 36° 50°
散热器：铝
表面处理：喷漆

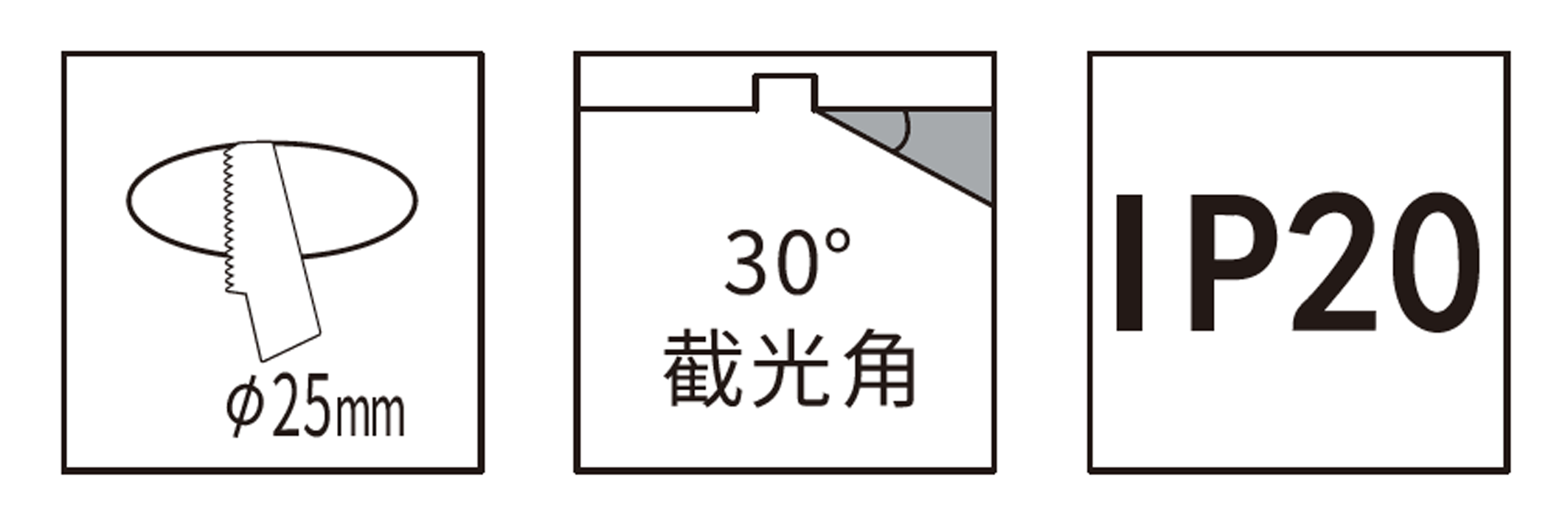

开孔：Φ25mm
功率：1W、3W、5W
光束角：15° 24° 36° 50°
散热器：铝
表面处理：喷漆
开孔：Φ25mm
可选配件
产品参数
| 产品名称 | 型号 | 功率 | 电压/电流 | 显色性 | 光束角 | 色温 | 光强 | 照度表 | IES | 说明书 |
|---|---|---|---|---|---|---|---|---|---|---|
| 嵌⼊式下照筒灯 | EN36008-001 | 1W | 3V/350mA | Ra>90 | 15° | 2700K | 138CD |  | | |
| 嵌⼊式下照筒灯 | EN36008-001 | 1W | 3V/350mA | Ra>90 | 15° | 3000K | 145CD | | | |
| 嵌⼊式下照筒灯 | EN36008-001 | 1W | 3V/350mA | Ra>90 | 15° | 4000K | 153CD | | | |
| 嵌⼊式下照筒灯 | EN36008-001 | 1W | 3V/350mA | Ra>90 | 24° | 2700K | 84CD | | | |
| 嵌⼊式下照筒灯 | EN36008-001 | 1W | 3V/350mA | Ra>90 | 24° | 3000K | 89CD | | | |
| 嵌⼊式下照筒灯 | EN36008-001 | 1W | 3V/350mA | Ra>90 | 24° | 4000K | 93CD | | | |
| 嵌⼊式下照筒灯 | EN36008-001 | 1W | 3V/350mA | Ra>90 | 36° | 2700K | 70CD | | | |
| 嵌⼊式下照筒灯 | EN36008-001 | 1W | 3V/350mA | Ra>90 | 36° | 3000K | 74CD | | | |
| 嵌⼊式下照筒灯 | EN36008-001 | 1W | 3V/350mA | Ra>90 | 36° | 4000K | 78CD | | | |
| 嵌⼊式下照筒灯 | EN36008-003 | 3W | 3V/700mA | Ra>90 | 15° | 2700K | 414CD | | | |
| 嵌⼊式下照筒灯 | EN36008-003 | 3W | 3V/700mA | Ra>90 | 15° | 3000K | 435CD | | | |
| 嵌⼊式下照筒灯 | EN36008-003 | 3W | 3V/700mA | Ra>90 | 15° | 4000K | 458CD | | | |
| 嵌⼊式下照筒灯 | EN36008-003 | 3W | 3V/700mA | Ra>90 | 24° | 2700K | 252CD | | | |
| 嵌⼊式下照筒灯 | EN36008-003 | 3W | 3V/700mA | Ra>90 | 24° | 3000K | 266CD | | | |
| 嵌⼊式下照筒灯 | EN36008-003 | 3W | 3V/700mA | Ra>90 | 24° | 4000K | 280CD | | | |
| 嵌⼊式下照筒灯 | EN36008-003 | 3W | 3V/700mA | Ra>90 | 36° | 2700K | 211CD | | | |
| 嵌⼊式下照筒灯 | EN36008-003 | 3W | 3V/700mA | Ra>90 | 36° | 3000K | 222CD | | | |
| 嵌⼊式下照筒灯 | EN36008-003 | 3W | 3V/700mA | Ra>90 | 36° | 4000K | 234CD | | | |
| 嵌⼊式下照筒灯 | EN36008-005 | 5W | 3V/900mA | Ra>90 | 15° | 2700K | 689CD | | | |
| 嵌⼊式下照筒灯 | EN36008-005 | 5W | 3V/900mA | Ra>90 | 15° | 3000K | 726CD | | | |
| 嵌⼊式下照筒灯 | EN36008-005 | 5W | 3V/900mA | Ra>90 | 15° | 4000K | 764CD | | | |
| 嵌⼊式下照筒灯 | EN36008-005 | 5W | 3V/900mA | Ra>90 | 24° | 2700K | 420CD | | | |
| 嵌⼊式下照筒灯 | EN36008-005 | 5W | 3V/900mA | Ra>90 | 24° | 3000K | 443CD | | | |
| 嵌⼊式下照筒灯 | EN36008-005 | 5W | 3V/900mA | Ra>90 | 24° | 4000K | 466CD | | | |
| 嵌⼊式下照筒灯 | EN36008-005 | 5W | 3V/900mA | Ra>90 | 36° | 2700K | 352CD | | | |
| 嵌⼊式下照筒灯 | EN36008-005 | 5W | 3V/900mA | Ra>90 | 36° | 3000K | 370CD | | | |
| 嵌⼊式下照筒灯 | EN36008-005 | 5W | 3V/900mA | Ra>90 | 36° | 4000K | 389CD | | | |
| 嵌⼊式下照筒灯 | EN36008-005 | 5W | 3V/900mA | Ra>90 | 50° | 2700K | 283CD | | | |
| 嵌⼊式下照筒灯 | EN36008-005 | 5W | 3V/900mA | Ra>90 | 50° | 3000K | 297CD | | | |
| 嵌⼊式下照筒灯 | EN36008-005 | 5W | 3V/900mA | Ra>90 | 50° | 4000K | 313CD | | | |
