产品规格
型号：EN35009
功率：10W、15W、20W、25W、30W、35W、40W
光束角：15° 24° 36°
散热器：铝
表面处理：喷漆

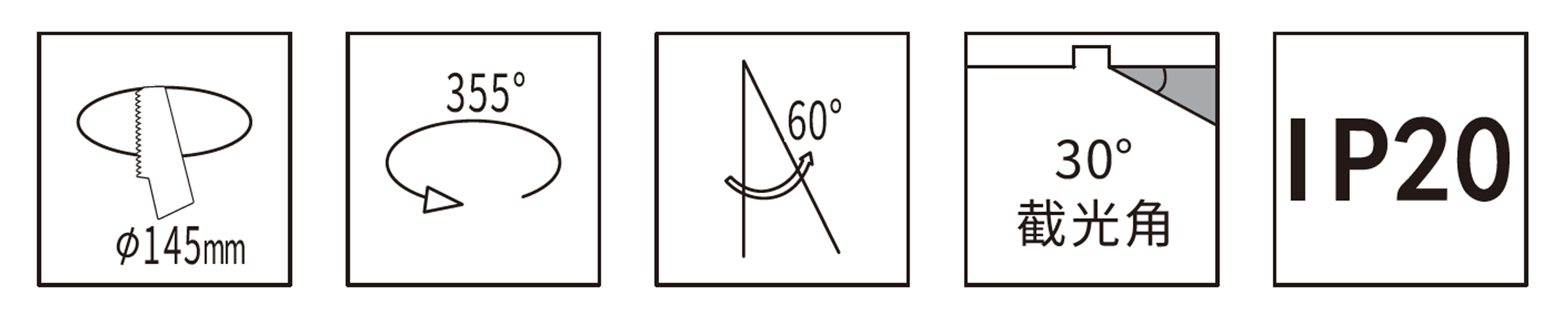

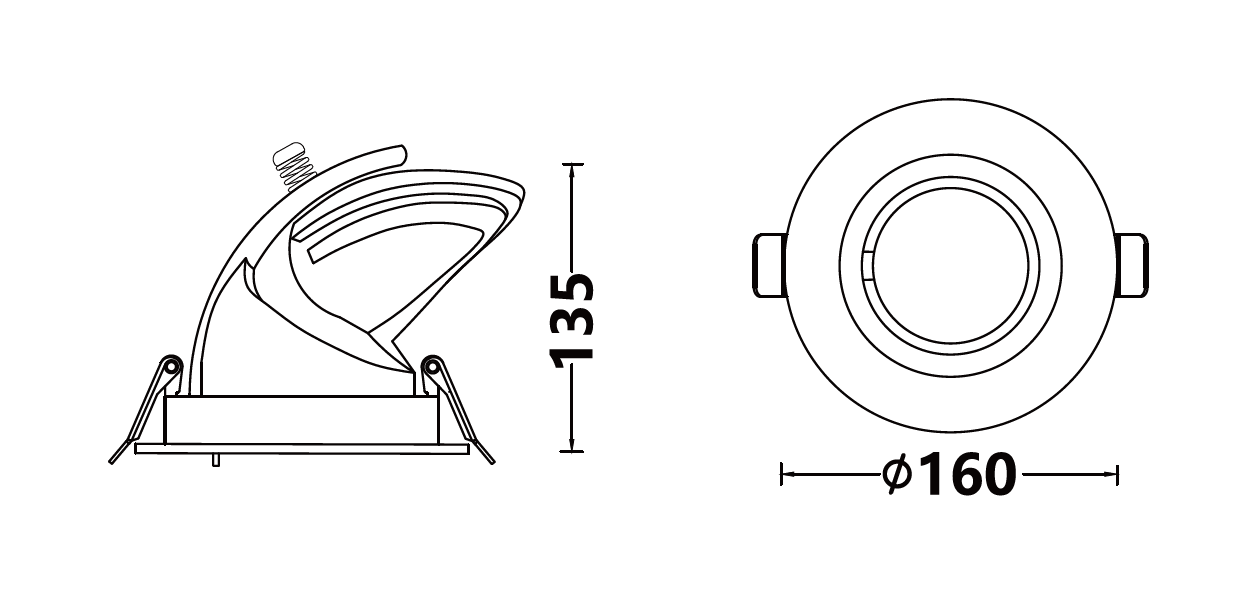

开孔：Φ145mm
功率：10W、15W、20W、25W、30W、35W、40W
光束角：15° 24° 36°
散热器：铝
表面处理：喷漆
开孔：Φ145mm
可选配件
产品参数
| 产品名称 | 型号 | 功率 | 电压/电流 | 显色性 | 光束角 | 色温 | 光强 | 照度表 | IES | 说明书 |
|---|---|---|---|---|---|---|---|---|---|---|
| 嵌⼊式象⿐灯 | EN35009-010 | 10W | 37V/250mA | Ra>90 | 15° | 2700K | 4608CD |  | | |
| 嵌⼊式象⿐灯 | EN35009-010 | 10W | 37V/250mA | Ra>90 | 15° | 3000K | 4864CD | | | |
| 嵌⼊式象⿐灯 | EN35009-010 | 10W | 37V/250mA | Ra>90 | 15° | 4000K | 5120CD | | | |
| 嵌⼊式象⿐灯 | EN35009-010 | 10W | 37V/250mA | Ra>90 | 24° | 2700K | 3184CD | | | |
| 嵌⼊式象⿐灯 | EN35009-010 | 10W | 37V/250mA | Ra>90 | 24° | 3000K | 3361CD | | | |
| 嵌⼊式象⿐灯 | EN35009-010 | 10W | 37V/250mA | Ra>90 | 24° | 4000K | 3538CD | | | |
| 嵌⼊式象⿐灯 | EN35009-010 | 10W | 37V/250mA | Ra>90 | 36° | 2700K | 1793CD | | | |
| 嵌⼊式象⿐灯 | EN35009-010 | 10W | 37V/250mA | Ra>90 | 36° | 3000K | 1893CD | | | |
| 嵌⼊式象⿐灯 | EN35009-010 | 10W | 37V/250mA | Ra>90 | 36° | 4000K | 1993CD | | | |
| 嵌⼊式象⿐灯 | EN35009-015 | 15W | 37V/350mA | Ra>90 | 15° | 2700K | 6932CD | | | |
| 嵌⼊式象⿐灯 | EN35009-015 | 15W | 37V/350mA | Ra>90 | 15° | 3000K | 7296CD | | | |
| 嵌⼊式象⿐灯 | EN35009-015 | 15W | 37V/350mA | Ra>90 | 15° | 4000K | 7680CD | | | |
| 嵌⼊式象⿐灯 | EN35009-015 | 15W | 37V/350mA | Ra>90 | 24° | 2700K | 4789CD | | | |
| 嵌⼊式象⿐灯 | EN35009-015 | 15W | 37V/350mA | Ra>90 | 24° | 3000K | 5041CD | | | |
| 嵌⼊式象⿐灯 | EN35009-015 | 15W | 37V/350mA | Ra>90 | 24° | 4000K | 5307CD | | | |
| 嵌⼊式象⿐灯 | EN35009-015 | 15W | 37V/350mA | Ra>90 | 36° | 2700K | 2698CD | | | |
| 嵌⼊式象⿐灯 | EN35009-015 | 15W | 37V/350mA | Ra>90 | 36° | 3000K | 2840CD | | | |
| 嵌⼊式象⿐灯 | EN35009-015 | 15W | 37V/350mA | Ra>90 | 36° | 4000K | 2989CD | | | |
| 嵌⼊式象⿐灯 | EN35009-020 | 20W | 37V/500mA | Ra>90 | 15° | 2700K | 10137CD | | | |
| 嵌⼊式象⿐灯 | EN35009-020 | 20W | 37V/500mA | Ra>90 | 15° | 3000K | 10671CD | | | |
| 嵌⼊式象⿐灯 | EN35009-020 | 20W | 37V/500mA | Ra>90 | 15° | 4000K | 11232CD | | | |
| 嵌⼊式象⿐灯 | EN35009-020 | 20W | 37V/500mA | Ra>90 | 24° | 2700K | 6992CD | | | |
| 嵌⼊式象⿐灯 | EN35009-020 | 20W | 37V/500mA | Ra>90 | 24° | 3000K | 7360CD | | | |
| 嵌⼊式象⿐灯 | EN35009-020 | 20W | 37V/500mA | Ra>90 | 24° | 4000K | 7747CD | | | |
| 嵌⼊式象⿐灯 | EN35009-020 | 20W | 37V/500mA | Ra>90 | 36° | 2700K | 3989CD | | | |
| 嵌⼊式象⿐灯 | EN35009-020 | 20W | 37V/500mA | Ra>90 | 36° | 3000K | 4199CD | | | |
| 嵌⼊式象⿐灯 | EN35009-020 | 20W | 37V/500mA | Ra>90 | 36° | 4000K | 4420CD | | | |
| 嵌⼊式象⿐灯 | EN35009-025 | 25W | 37V/600mA | Ra>90 | 15° | 2700K | 11474CD | | | |
| 嵌⼊式象⿐灯 | EN35009-025 | 25W | 37V/600mA | Ra>90 | 15° | 3000K | 12078CD | | | |
| 嵌⼊式象⿐灯 | EN35009-025 | 25W | 37V/600mA | Ra>90 | 15° | 4000K | 12713CD | | | |
| 嵌⼊式象⿐灯 | EN35009-025 | 25W | 37V/600mA | Ra>90 | 24° | 2700K | 7802CD | | | |
| 嵌⼊式象⿐灯 | EN35009-025 | 25W | 37V/600mA | Ra>90 | 24° | 3000K | 8213CD | | | |
| 嵌⼊式象⿐灯 | EN35009-025 | 25W | 37V/600mA | Ra>90 | 24° | 4000K | 8645CD | | | |
| 嵌⼊式象⿐灯 | EN35009-025 | 25W | 37V/600mA | Ra>90 | 36° | 2700K | 4300CD | | | |
| 嵌⼊式象⿐灯 | EN35009-025 | 25W | 37V/600mA | Ra>90 | 36° | 3000K | 4526CD | | | |
| 嵌⼊式象⿐灯 | EN35009-025 | 25W | 37V/600mA | Ra>90 | 36° | 4000K | 4764CD | | | |
| 嵌⼊式象⿐灯 | EN35009-030 | 30W | 37V/650mA | Ra>90 | 15° | 2700K | 13125CD | | | |
| 嵌⼊式象⿐灯 | EN35009-030 | 30W | 37V/650mA | Ra>90 | 15° | 3000K | 13815CD | | | |
| 嵌⼊式象⿐灯 | EN35009-030 | 30W | 37V/650mA | Ra>90 | 15° | 4000K | 14542CD | | | |
| 嵌⼊式象⿐灯 | EN35009-030 | 30W | 37V/650mA | Ra>90 | 24° | 2700K | 8909CD | | | |
| 嵌⼊式象⿐灯 | EN35009-030 | 30W | 37V/650mA | Ra>90 | 24° | 3000K | 9378CD | | | |
| 嵌⼊式象⿐灯 | EN35009-030 | 30W | 37V/650mA | Ra>90 | 24° | 4000K | 9871CD | | | |
| 嵌⼊式象⿐灯 | EN35009-030 | 30W | 37V/650mA | Ra>90 | 36° | 2700K | 5138CD | | | |
| 嵌⼊式象⿐灯 | EN35009-030 | 30W | 37V/650mA | Ra>90 | 36° | 3000K | 5408CD | | | |
| 嵌⼊式象⿐灯 | EN35009-030 | 30W | 37V/650mA | Ra>90 | 36° | 4000K | 5693CD | | | |
| 嵌⼊式象⿐灯 | EN35009-035 | 35W | 37V/750mA | Ra>90 | 15° | 2700K | 15284CD | | | |
| 嵌⼊式象⿐灯 | EN35009-035 | 35W | 37V/750mA | Ra>90 | 15° | 3000K | 16088CD | | | |
| 嵌⼊式象⿐灯 | EN35009-035 | 35W | 37V/750mA | Ra>90 | 15° | 4000K | 16935CD | | | |
| 嵌⼊式象⿐灯 | EN35009-035 | 35W | 37V/750mA | Ra>90 | 24° | 2700K | 10302CD | | | |
| 嵌⼊式象⿐灯 | EN35009-035 | 35W | 37V/750mA | Ra>90 | 24° | 3000K | 10845CD | | | |
| 嵌⼊式象⿐灯 | EN35009-035 | 35W | 37V/750mA | Ra>90 | 24° | 4000K | 11415CD | | | |
| 嵌⼊式象⿐灯 | EN35009-035 | 35W | 37V/750mA | Ra>90 | 36° | 2700K | 5944CD | | | |
| 嵌⼊式象⿐灯 | EN35009-035 | 35W | 37V/750mA | Ra>90 | 36° | 3000K | 6256CD | | | |
| 嵌⼊式象⿐灯 | EN35009-035 | 35W | 37V/750mA | Ra>90 | 36° | 4000K | 6586CD | | | |
| 嵌⼊式象⿐灯 | EN35009-040 | 40W | 37V/900mA | Ra>90 | 15° | 2700K | 17576CD | | | |
| 嵌⼊式象⿐灯 | EN35009-040 | 40W | 37V/900mA | Ra>90 | 15° | 3000K | 18501CD | | | |
| 嵌⼊式象⿐灯 | EN35009-040 | 40W | 37V/900mA | Ra>90 | 15° | 4000K | 19474CD | | | |
| 嵌⼊式象⿐灯 | EN35009-040 | 40W | 37V/900mA | Ra>90 | 24° | 2700K | 11883CD | | | |
| 嵌⼊式象⿐灯 | EN35009-040 | 40W | 37V/900mA | Ra>90 | 24° | 3000K | 12509CD | | | |
| 嵌⼊式象⿐灯 | EN35009-040 | 40W | 37V/900mA | Ra>90 | 24° | 4000K | 13167CD | | | |
| 嵌⼊式象⿐灯 | EN35009-040 | 40W | 37V/900mA | Ra>90 | 36° | 2700K | 6792CD | | | |
| 嵌⼊式象⿐灯 | EN35009-040 | 40W | 37V/900mA | Ra>90 | 36° | 3000K | 7150CD | | | |
| 嵌⼊式象⿐灯 | EN35009-040 | 40W | 37V/900mA | Ra>90 | 36° | 4000K | 7526CD | | | |
