产品规格
型号：EN36026
功率：3W、5W、7W、10W、12W
光束角：24° 36°
散热器：铝
表面处理：喷漆

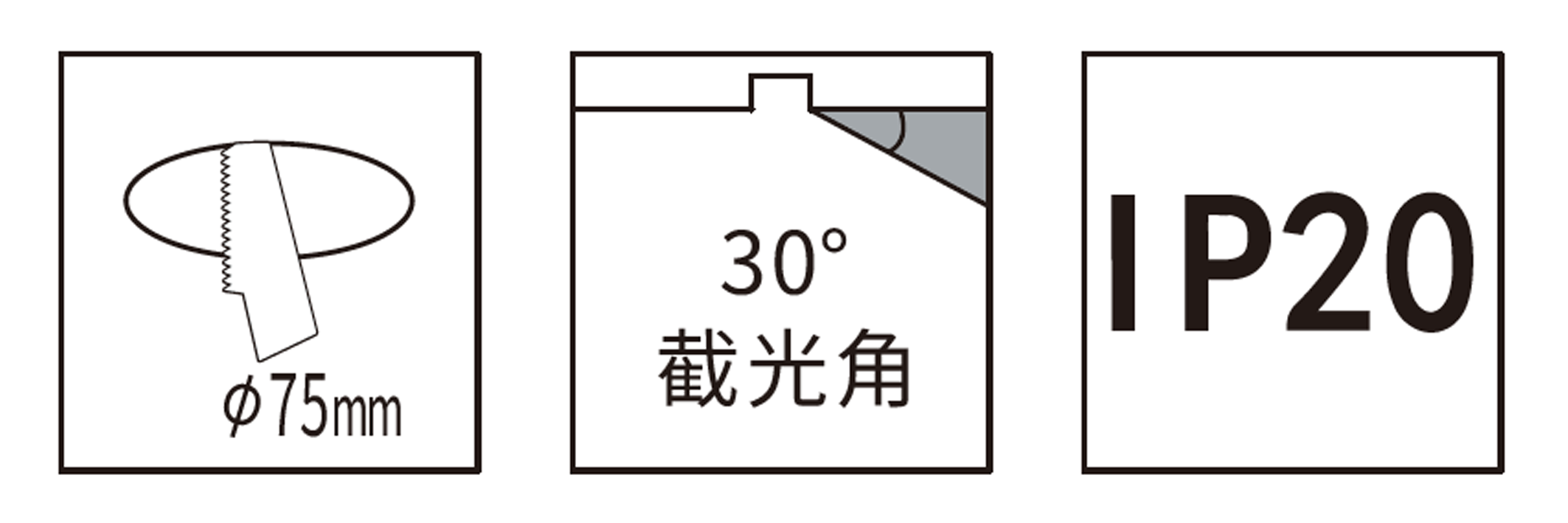

开孔：Φ75mm
功率：3W、5W、7W、10W、12W
光束角：24° 36°
散热器：铝
表面处理：喷漆
开孔：Φ75mm
可选配件

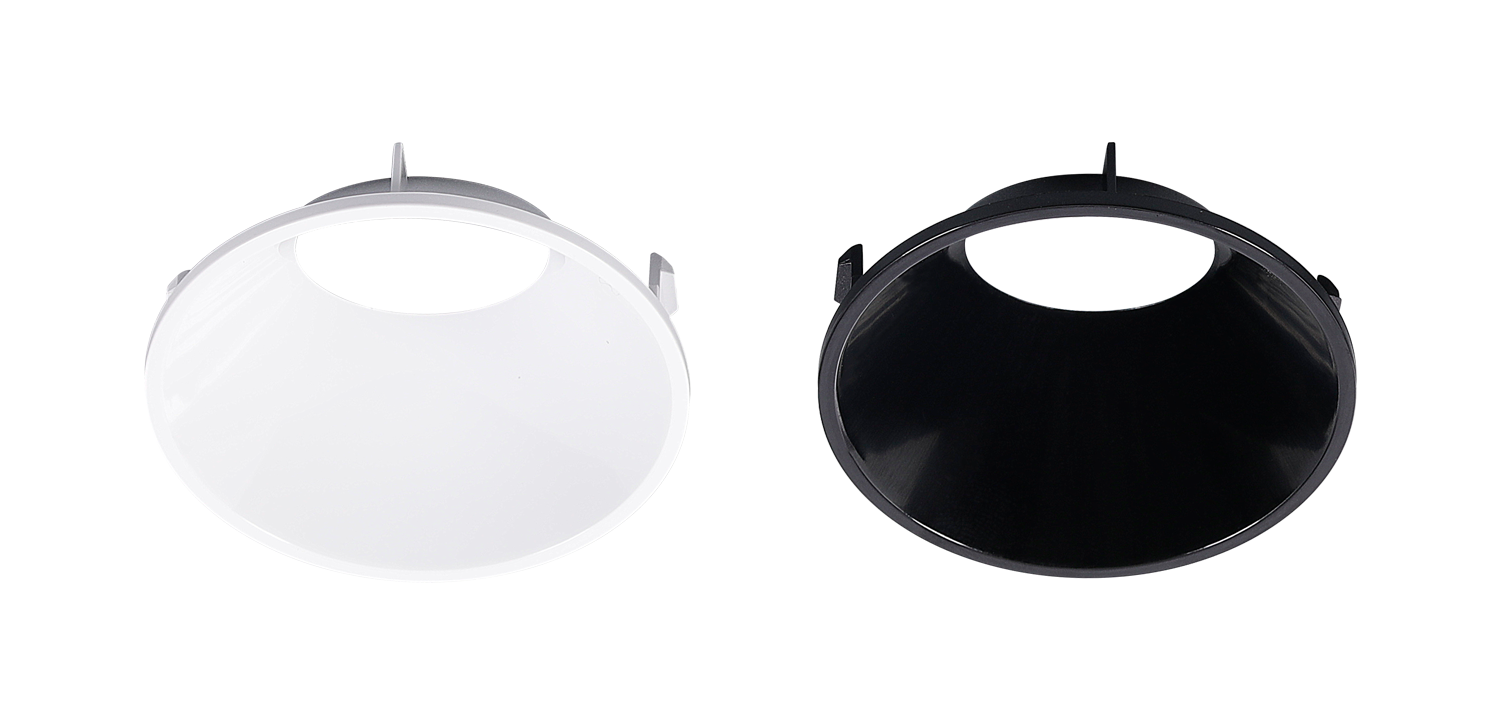

可选高效防眩罩
产品参数
| 产品名称 | 型号 | 功率 | 电压/电流 | 显色性 | 光束角 | 色温 | 光强 | 照度表 | IES | 说明书 |
|---|---|---|---|---|---|---|---|---|---|---|
| 嵌⼊式超薄筒灯 | EN36026-003 | 3W | 37V/80mA | Ra>90 | 24° | 2700K | 1389CD |  | | |
| 嵌⼊式超薄筒灯 | EN36026-003 | 3W | 37V/80mA | Ra>90 | 24° | 3000K | 1462CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-003 | 3W | 37V/80mA | Ra>90 | 24° | 4000K | 1539CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-003 | 3W | 37V/80mA | Ra>90 | 36° | 2700K | 908CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-003 | 3W | 37V/80mA | Ra>90 | 36° | 3000K | 956CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-003 | 3W | 37V/80mA | Ra>90 | 36° | 4000K | 1006CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-005 | 5W | 37V/120mA | Ra>90 | 24° | 2700K | 2330CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-005 | 5W | 37V/120mA | Ra>90 | 24° | 3000K | 2453CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-005 | 5W | 37V/120mA | Ra>90 | 24° | 4000K | 2582CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-005 | 5W | 37V/120mA | Ra>90 | 36° | 2700K | 1523CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-005 | 5W | 37V/120mA | Ra>90 | 36° | 3000K | 1603CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-005 | 5W | 37V/120mA | Ra>90 | 36° | 4000K | 1688CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-007 | 7W | 37V/150mA | Ra>90 | 24° | 2700K | 3149CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-007 | 7W | 37V/150mA | Ra>90 | 24° | 3000K | 3314CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-007 | 7W | 37V/150mA | Ra>90 | 24° | 4000K | 3489CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-007 | 7W | 37V/150mA | Ra>90 | 36° | 2700K | 2053CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-007 | 7W | 37V/150mA | Ra>90 | 36° | 3000K | 2161CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-007 | 7W | 37V/150mA | Ra>90 | 36° | 4000K | 2275CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-010 | 10W | 37V/250mA | Ra>90 | 24° | 2700K | 4481CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-010 | 10W | 37V/250mA | Ra>90 | 24° | 3000K | 4717CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-010 | 10W | 37V/250mA | Ra>90 | 24° | 4000K | 4965CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-010 | 10W | 37V/250mA | Ra>90 | 36° | 2700K | 2929CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-010 | 10W | 37V/250mA | Ra>90 | 36° | 3000K | 3083CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-010 | 10W | 37V/250mA | Ra>90 | 36° | 4000K | 3246CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-012 | 12W | 37V/300mA | Ra>90 | 24° | 2700K | 5890CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-012 | 12W | 37V/300mA | Ra>90 | 24° | 3000K | 6200CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-012 | 12W | 37V/300mA | Ra>90 | 24° | 4000K | 6526CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-012 | 12W | 37V/300mA | Ra>90 | 36° | 2700K | 3859CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-012 | 12W | 37V/300mA | Ra>90 | 36° | 3000K | 4062CD | | | |
| 嵌⼊式超薄筒灯 | EN36026-012 | 12W | 37V/300mA | Ra>90 | 36° | 4000K | 4276CD | | | |
