产品规格
型号：EN36028
功率：7W、10W、12W、15W、20W、25W
光束角：24° 36°
散热器：铝
表面处理：喷漆

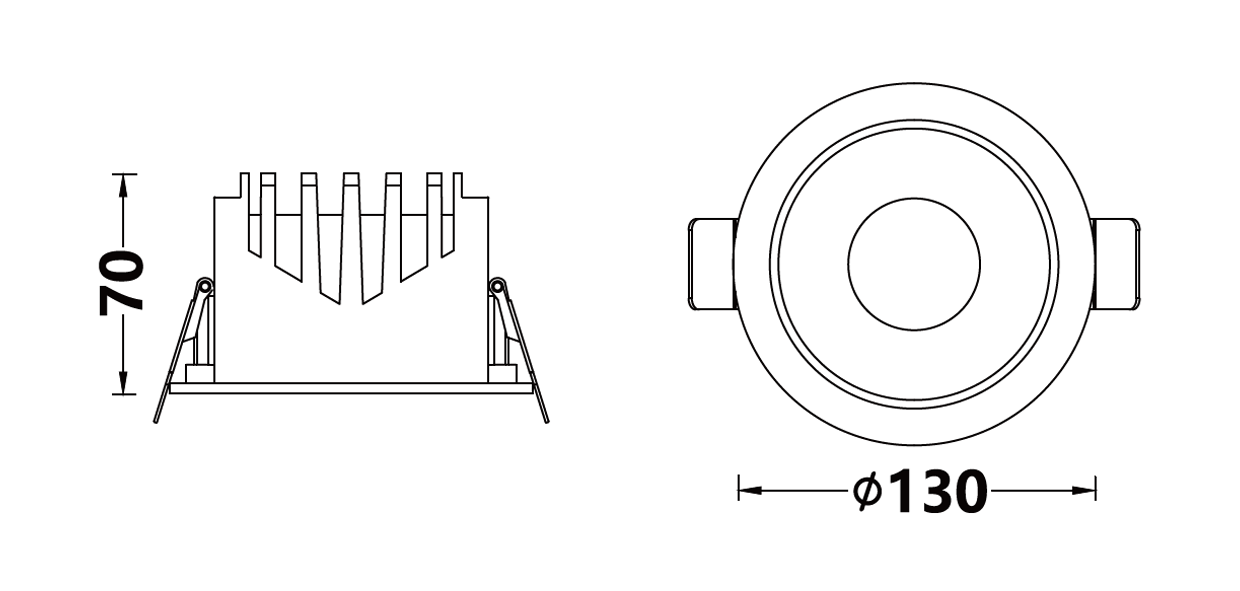

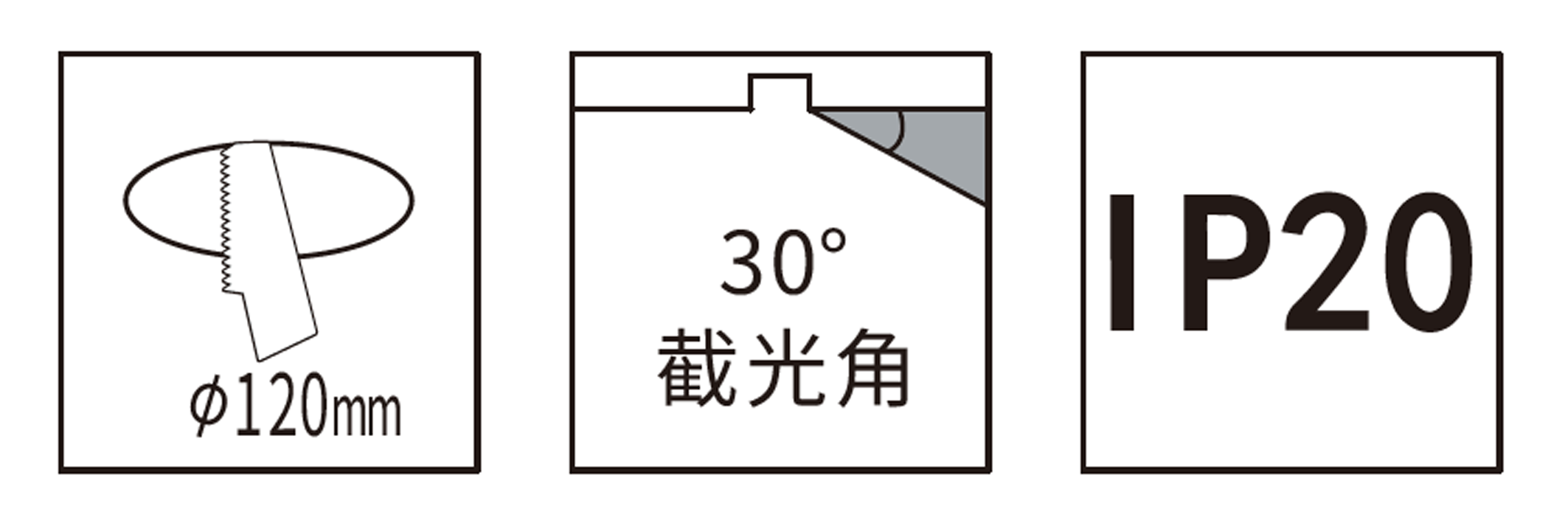

开孔：Φ120mm
功率：7W、10W、12W、15W、20W、25W
光束角：24° 36°
散热器：铝
表面处理：喷漆
开孔：Φ120mm

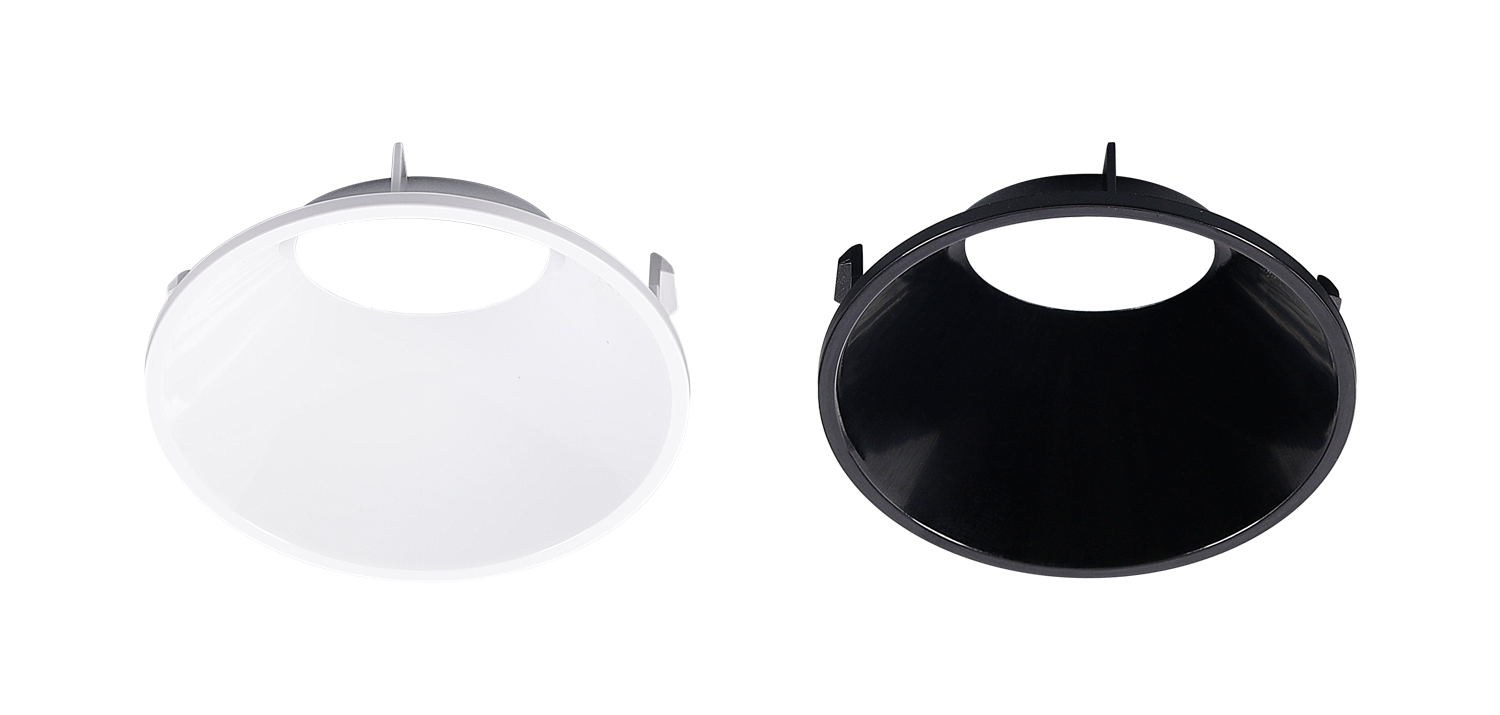

可选配件
可选高效防眩罩
产品参数
| 产品名称 | 型号 | 功率 | 电压/电流 | 显色性 | 光束角 | 色温 | 光强 | 照度表 | IES | 说明书 |
|---|---|---|---|---|---|---|---|---|---|---|
| 嵌⼊式超薄筒灯 | EN36028-007 | 7W | 37V/150mA | Ra>90 | 24° | 2700K | 3965CD |  | | |
| 嵌⼊式超薄筒灯 | EN36028-007 | 7W | 37V/150mA | Ra>90 | 24° | 3000K | 4174CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-007 | 7W | 37V/150mA | Ra>90 | 24° | 4000K | 4394CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-007 | 7W | 37V/150mA | Ra>90 | 36° | 2700K | 1514CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-007 | 7W | 37V/150mA | Ra>90 | 36° | 3000K | 1593CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-007 | 7W | 37V/150mA | Ra>90 | 36° | 4000K | 1677CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-010 | 10W | 37V/250mA | Ra>90 | 24° | 2700K | 5585CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-010 | 10W | 37V/250mA | Ra>90 | 24° | 3000K | 5879CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-010 | 10W | 37V/250mA | Ra>90 | 24° | 4000K | 6188CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-010 | 10W | 37V/250mA | Ra>90 | 36° | 2700K | 2132CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-010 | 10W | 37V/250mA | Ra>90 | 36° | 3000K | 2244CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-010 | 10W | 37V/250mA | Ra>90 | 36° | 4000K | 2363CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-012 | 12W | 37V/300mA | Ra>90 | 24° | 2700K | 6205CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-012 | 12W | 37V/300mA | Ra>90 | 24° | 3000K | 6531CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-012 | 12W | 37V/300mA | Ra>90 | 24° | 4000K | 6875CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-012 | 12W | 37V/300mA | Ra>90 | 36° | 2700K | 2626CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-012 | 12W | 37V/300mA | Ra>90 | 36° | 3000K | 2764CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-012 | 12W | 37V/300mA | Ra>90 | 36° | 4000K | 2910CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-015 | 15W | 37V/350mA | Ra>90 | 24° | 2700K | 8352CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-015 | 15W | 37V/350mA | Ra>90 | 24° | 3000K | 8791CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-015 | 15W | 37V/350mA | Ra>90 | 24° | 4000K | 9254CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-015 | 15W | 37V/350mA | Ra>90 | 36° | 2700K | 3554CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-015 | 15W | 37V/350mA | Ra>90 | 36° | 3000K | 3741CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-015 | 15W | 37V/350mA | Ra>90 | 36° | 4000K | 3938CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-020 | 20W | 37V/500mA | Ra>90 | 24° | 2700K | 10352CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-020 | 20W | 37V/500mA | Ra>90 | 24° | 3000K | 10897CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-020 | 20W | 37V/500mA | Ra>90 | 24° | 4000K | 11470CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-020 | 20W | 37V/500mA | Ra>90 | 36° | 2700K | 4357CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-020 | 20W | 37V/500mA | Ra>90 | 36° | 3000K | 4587CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-020 | 20W | 37V/500mA | Ra>90 | 36° | 4000K | 4828CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-025 | 25W | 37V/600mA | Ra>90 | 24° | 2700K | 12080CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-025 | 25W | 37V/600mA | Ra>90 | 24° | 3000K | 12716CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-025 | 25W | 37V/600mA | Ra>90 | 24° | 4000K | 13385CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-025 | 25W | 37V/600mA | Ra>90 | 36° | 2700K | 5107CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-025 | 25W | 37V/600mA | Ra>90 | 36° | 3000K | 5376CD | | | |
| 嵌⼊式超薄筒灯 | EN36028-025 | 25W | 37V/600mA | Ra>90 | 36° | 4000K | 5658CD | | | |
