产品规格
型号：EN26362
功率：5W*2、7W*2

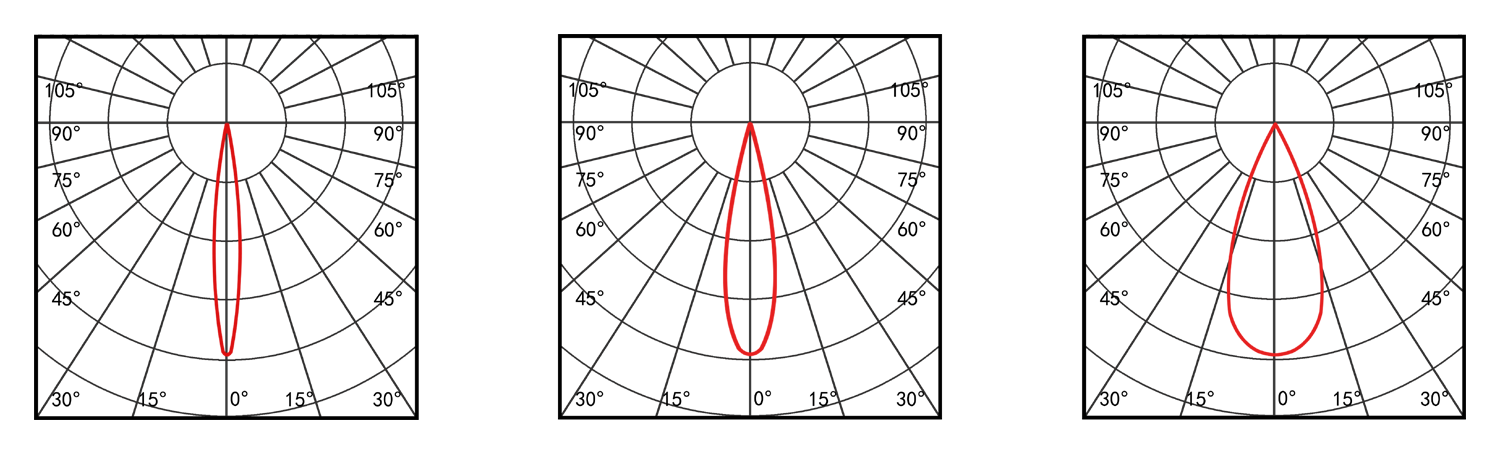

光束角：15° 30° 45°
散热器：铝
表面处理：喷漆

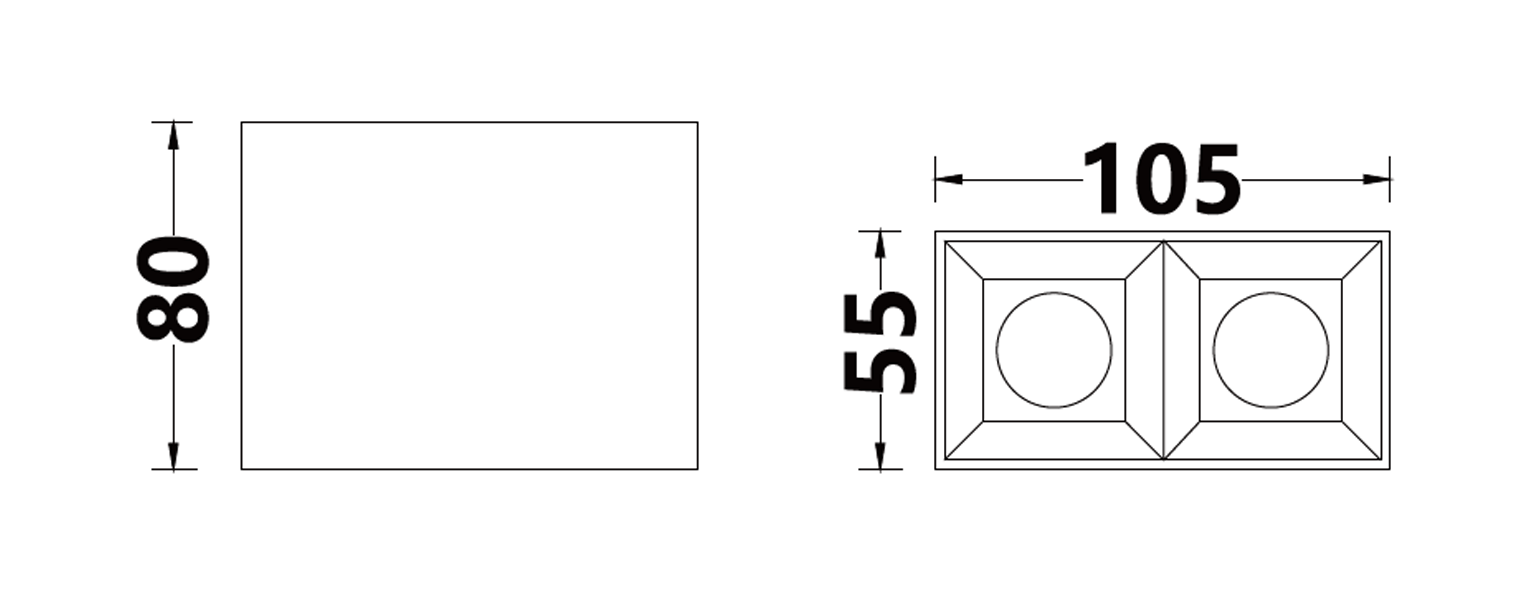

尺寸：W55*105mm H80mm
功率：5W*2、7W*2
光束角：15° 30° 45°
散热器：铝
表面处理：喷漆
尺寸：W55*105mm H80mm
可选配件

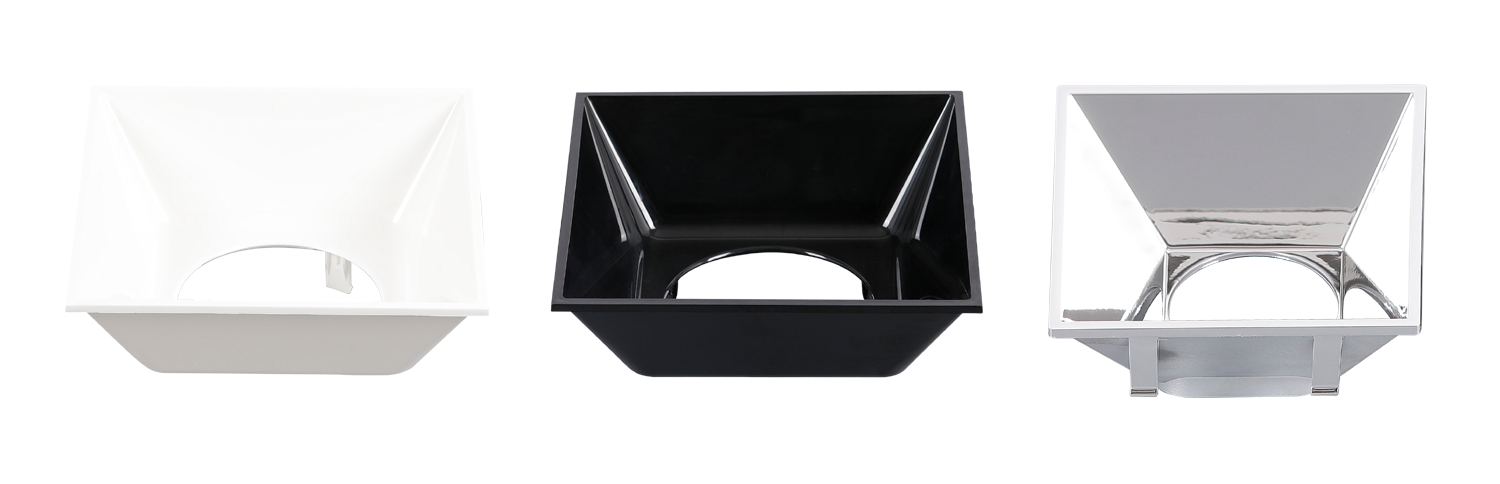

可选高效防眩罩
产品参数
| 产品名称 | 型号 | 功率 | 电压/电流 | 显色性 | 光束角 | 色温 | 光强 | 照度表 | IES | 说明书 |
|---|---|---|---|---|---|---|---|---|---|---|
| 明装⽅形筒灯 | EN26362-2*5 | 5W*2 | 37V/120mA | Ra>90 | 15° | 2700K |  | | | |
| 明装⽅形筒灯 | EN26362-2*5 | 5W*2 | 37V/120mA | Ra>90 | 15° | 3000K | | | | |
| 明装⽅形筒灯 | EN26362-2*5 | 5W*2 | 37V/120mA | Ra>90 | 15° | 4000K | | | | |
| 明装⽅形筒灯 | EN26362-2*5 | 5W*2 | 37V/120mA | Ra>90 | 30° | 2700K | | | | |
| 明装⽅形筒灯 | EN26362-2*5 | 5W*2 | 37V/120mA | Ra>90 | 30° | 3000K | | | | |
| 明装⽅形筒灯 | EN26362-2*5 | 5W*2 | 37V/120mA | Ra>90 | 30° | 4000K | | | | |
| 明装⽅形筒灯 | EN26362-2*5 | 5W*2 | 37V/120mA | Ra>90 | 45° | 2700K | | | | |
| 明装⽅形筒灯 | EN26362-2*5 | 5W*2 | 37V/120mA | Ra>90 | 45° | 3000K | | | | |
| 明装⽅形筒灯 | EN26362-2*5 | 5W*2 | 37V/120mA | Ra>90 | 45° | 4000K | | | | |
| 明装⽅形筒灯 | EN26362-2*7 | 7W*2 | 37V/150mA | Ra>90 | 15° | 2700K | | | | |
| 明装⽅形筒灯 | EN26362-2*7 | 7W*2 | 37V/150mA | Ra>90 | 15° | 3000K | | | | |
| 明装⽅形筒灯 | EN26362-2*7 | 7W*2 | 37V/150mA | Ra>90 | 15° | 4000K | | | | |
| 明装⽅形筒灯 | EN26362-2*7 | 7W*2 | 37V/150mA | Ra>90 | 30° | 2700K | | | | |
| 明装⽅形筒灯 | EN26362-2*7 | 7W*2 | 37V/150mA | Ra>90 | 30° | 3000K | | | | |
| 明装⽅形筒灯 | EN26362-2*7 | 7W*2 | 37V/150mA | Ra>90 | 30° | 4000K | | | | |
| 明装⽅形筒灯 | EN26362-2*7 | 7W*2 | 37V/150mA | Ra>90 | 45° | 2700K | | | | |
| 明装⽅形筒灯 | EN26362-2*7 | 7W*2 | 37V/150mA | Ra>90 | 45° | 3000K | | | | |
| 明装⽅形筒灯 | EN26362-2*7 | 7W*2 | 37V/150mA | Ra>90 | 45° | 4000K | | | |
