产品规格
型号：EN26010
功率：10W、12W、15W、20W、25W、30W、35W、40W、45W
光束角：15° 24° 36° 50°
散热器：铝
表面处理：喷漆

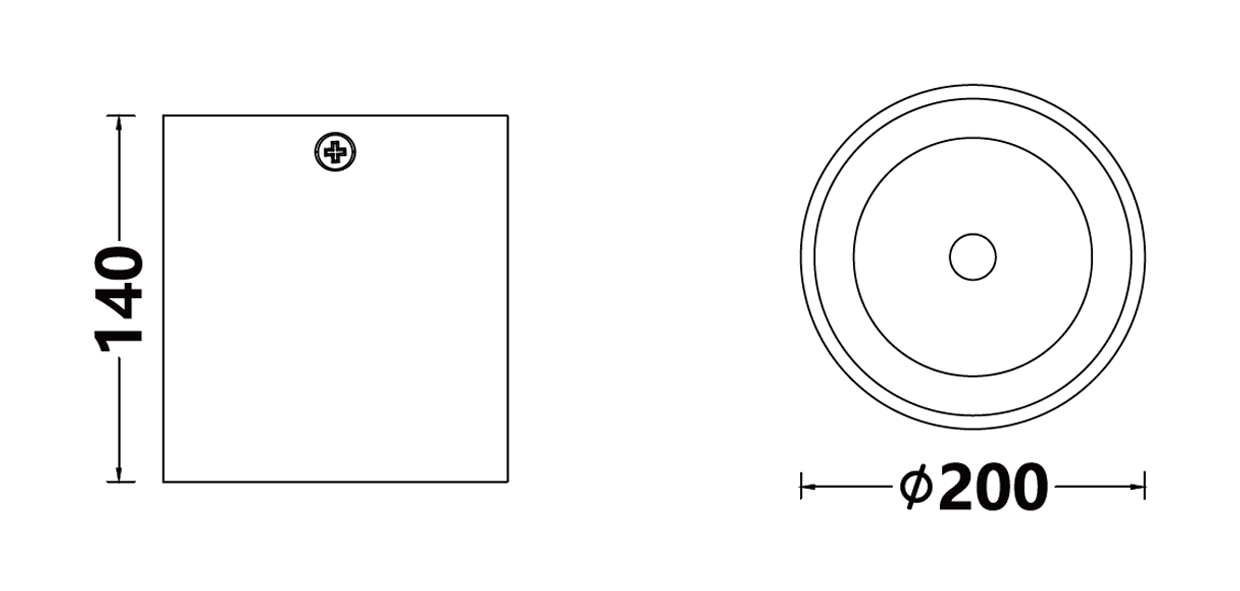

尺寸：Φ200mm H140mm
功率：10W、12W、15W、20W、25W、30W、35W、40W、45W
光束角：15° 24° 36° 50°
散热器：铝
表面处理：喷漆
尺寸：Φ200mm H140mm
可选配件
可选高效防眩罩
产品参数
| 产品名称 | 型号 | 功率 | 电压/电流 | 显色性 | 光束角 | 色温 | 光强 | 照度表 | IES | 说明书 |
|---|---|---|---|---|---|---|---|---|---|---|
| 明装圆形筒灯 | EN26010-010 | 10W | 37V/250mA | Ra>90 | 15° | 3000K | 9443CD |  | | |
| 明装圆形筒灯 | EN26010-010 | 10W | 37V/250mA | Ra>90 | 24° | 3000K | 6876CD | | | |
| 明装圆形筒灯 | EN26010-010 | 10W | 37V/250mA | Ra>90 | 36° | 3000K | 2625CD | | | |
| 明装圆形筒灯 | EN26010-010 | 10W | 37V/250mA | Ra>90 | 50° | 3000K | 1258CD | | | |
| 明装圆形筒灯 | EN26010-012 | 12W | 37V/300mA | Ra>90 | 15° | 3000K | 11237CD | | | |
| 明装圆形筒灯 | EN26010-012 | 12W | 37V/300mA | Ra>90 | 24° | 3000K | 8182CD | | | |
| 明装圆形筒灯 | EN26010-012 | 12W | 37V/300mA | Ra>90 | 36° | 3000K | 3124CD | | | |
| 明装圆形筒灯 | EN26010-012 | 12W | 37V/300mA | Ra>90 | 50° | 3000K | 1497CD | | | |
| 明装圆形筒灯 | EN26010-015 | 15W | 37V/350mA | Ra>90 | 15° | 3000K | 14070CD | | | |
| 明装圆形筒灯 | EN26010-015 | 15W | 37V/350mA | Ra>90 | 24° | 3000K | 10245CD | | | |
| 明装圆形筒灯 | EN26010-015 | 15W | 37V/350mA | Ra>90 | 36° | 3000K | 3911CD | | | |
| 明装圆形筒灯 | EN26010-015 | 15W | 37V/350mA | Ra>90 | 50° | 3000K | 1874CD | | | |
| 明装圆形筒灯 | EN26010-020 | 20W | 37V/500mA | Ra>90 | 15° | 3000K | 18792CD | | | |
| 明装圆形筒灯 | EN26010-020 | 20W | 37V/500mA | Ra>90 | 24° | 3000K | 13683CD | | | |
| 明装圆形筒灯 | EN26010-020 | 20W | 37V/500mA | Ra>90 | 36° | 3000K | 5224CD | | | |
| 明装圆形筒灯 | EN26010-020 | 20W | 37V/500mA | Ra>90 | 50° | 3000K | 2503CD | | | |
| 明装圆形筒灯 | EN26010-025 | 25W | 37V/600mA | Ra>90 | 15° | 3000K | 23513CD | | | |
| 明装圆形筒灯 | EN26010-025 | 25W | 37V/600mA | Ra>90 | 24° | 3000K | 17121CD | | | |
| 明装圆形筒灯 | EN26010-025 | 25W | 37V/600mA | Ra>90 | 36° | 3000K | 6536CD | | | |
| 明装圆形筒灯 | EN26010-025 | 25W | 37V/600mA | Ra>90 | 50° | 3000K | 3132CD | | | |
| 明装圆形筒灯 | EN26010-030 | 30W | 37V/650mA | Ra>90 | 15° | 3000K | 28235CD | | | |
| 明装圆形筒灯 | EN26010-030 | 30W | 37V/650mA | Ra>90 | 24° | 3000K | 20559CD | | | |
| 明装圆形筒灯 | EN26010-030 | 30W | 37V/650mA | Ra>90 | 36° | 3000K | 7849CD | | | |
| 明装圆形筒灯 | EN26010-030 | 30W | 37V/650mA | Ra>90 | 50° | 3000K | 3761CD | | | |
| 明装圆形筒灯 | EN26010-035 | 35W | 37V/750mA | Ra>90 | 15° | 3000K | 32956CD | | | |
| 明装圆形筒灯 | EN26010-035 | 35W | 37V/750mA | Ra>90 | 24° | 3000K | 23997CD | | | |
| 明装圆形筒灯 | EN26010-035 | 35W | 37V/750mA | Ra>90 | 36° | 3000K | 9161CD | | | |
| 明装圆形筒灯 | EN26010-035 | 35W | 37V/750mA | Ra>90 | 50° | 3000K | 4390CD | | | |
| 明装圆形筒灯 | EN26010-040 | 40W | 37V/900mA | Ra>90 | 15° | 3000K | 37678CD | | | |
| 明装圆形筒灯 | EN26010-040 | 40W | 37V/900mA | Ra>90 | 24° | 3000K | 27435CD | | | |
| 明装圆形筒灯 | EN26010-040 | 40W | 37V/900mA | Ra>90 | 36° | 3000K | 10474CD | | | |
| 明装圆形筒灯 | EN26010-040 | 40W | 37V/900mA | Ra>90 | 50° | 3000K | 5019CD | | | |
| 明装圆形筒灯 | EN26010-045 | 45W | 37V/1000mA | Ra>90 | 15° | 3000K | 42399CD | | | |
| 明装圆形筒灯 | EN26010-045 | 45W | 37V/1000mA | Ra>90 | 24° | 3000K | 30873CD | | | |
| 明装圆形筒灯 | EN26010-045 | 45W | 37V/1000mA | Ra>90 | 36° | 3000K | 11786CD | | | |
| 明装圆形筒灯 | EN26010-045 | 45W | 37V/1000mA | Ra>90 | 50° | 3000K | 5648CD | | | |
