产品规格

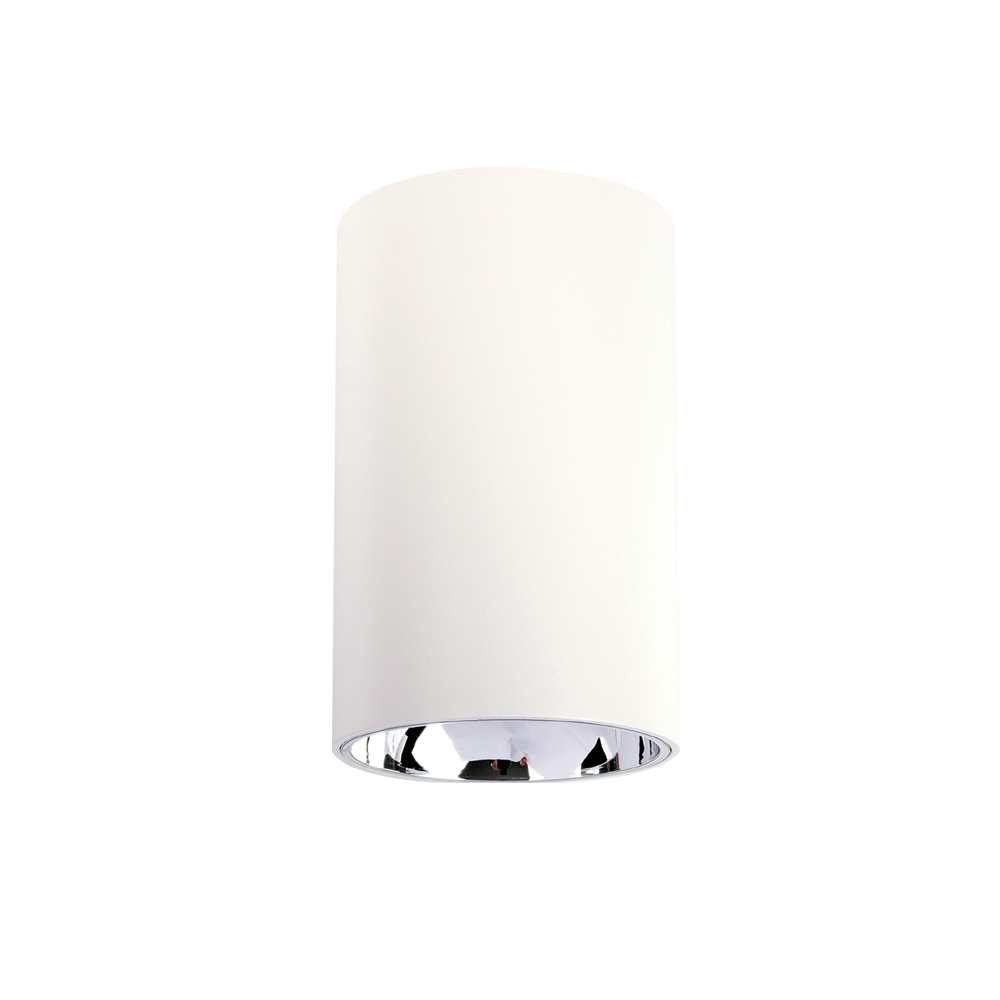

型号：EN26014
功率：5W、7W、10W、12W
光束角：15° 30° 45°
散热器：铝
表面处理：喷漆

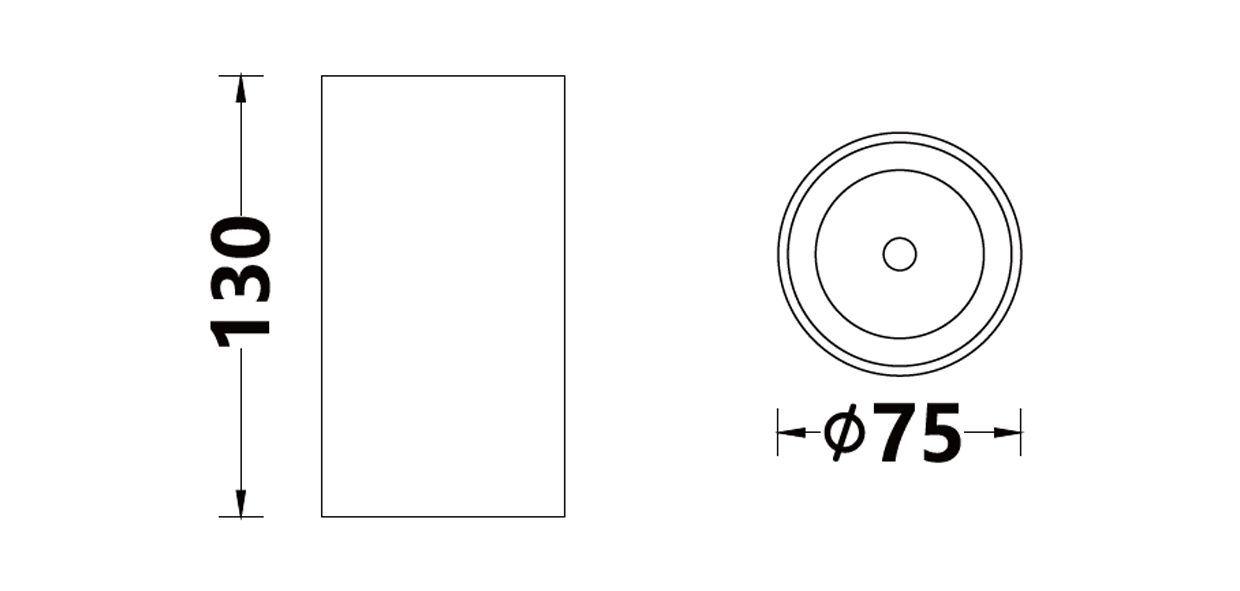

尺寸：Φ75mm H130mm
功率：5W、7W、10W、12W
光束角：15° 30° 45°
散热器：铝
表面处理：喷漆
尺寸：Φ75mm H130mm
可选配件
可选高效防眩罩
产品参数
| 产品名称 | 型号 | 功率 | 电压/电流 | 显色性 | 光束角 | 色温 | 光强 | 照度表 | IES | 说明书 |
|---|---|---|---|---|---|---|---|---|---|---|
| 明装圆形筒灯 | EN26014-005 | 5W | 37V/120mA | Ra>90 | 15° | 2700K | 3084CD |  | | |
| 明装圆形筒灯 | EN26014-005 | 5W | 37V/120mA | Ra>90 | 15° | 3000K | 3246CD | | | |
| 明装圆形筒灯 | EN26014-005 | 5W | 37V/120mA | Ra>90 | 15° | 4000K | 3417CD | | | |
| 明装圆形筒灯 | EN26014-005 | 5W | 37V/120mA | Ra>90 | 30° | 2700K | 1523CD | | | |
| 明装圆形筒灯 | EN26014-005 | 5W | 37V/120mA | Ra>90 | 30° | 3000K | 1603CD | | | |
| 明装圆形筒灯 | EN26014-005 | 5W | 37V/120mA | Ra>90 | 30° | 4000K | 1688CD | | | |
| 明装圆形筒灯 | EN26014-005 | 5W | 37V/120mA | Ra>90 | 45° | 2700K | 744CD | | | |
| 明装圆形筒灯 | EN26014-005 | 5W | 37V/120mA | Ra>90 | 45° | 3000K | 783CD | | | |
| 明装圆形筒灯 | EN26014-005 | 5W | 37V/120mA | Ra>90 | 45° | 4000K | 824CD | | | |
| 明装圆形筒灯 | EN26014-007 | 7W | 37V/150mA | Ra>90 | 15° | 2700K | 4164CD | | | |
| 明装圆形筒灯 | EN26014-007 | 7W | 37V/150mA | Ra>90 | 15° | 3000K | 4383CD | | | |
| 明装圆形筒灯 | EN26014-007 | 7W | 37V/150mA | Ra>90 | 15° | 4000K | 4614CD | | | |
| 明装圆形筒灯 | EN26014-007 | 7W | 37V/150mA | Ra>90 | 30° | 2700K | 2053CD | | | |
| 明装圆形筒灯 | EN26014-007 | 7W | 37V/150mA | Ra>90 | 30° | 3000K | 2161CD | | | |
| 明装圆形筒灯 | EN26014-007 | 7W | 37V/150mA | Ra>90 | 30° | 4000K | 2275CD | | | |
| 明装圆形筒灯 | EN26014-007 | 7W | 37V/150mA | Ra>90 | 45° | 2700K | 1213CD | | | |
| 明装圆形筒灯 | EN26014-007 | 7W | 37V/150mA | Ra>90 | 45° | 3000K | 1276CD | | | |
| 明装圆形筒灯 | EN26014-007 | 7W | 37V/150mA | Ra>90 | 45° | 4000K | 1344CD | | | |
| 明装圆形筒灯 | EN26014-010 | 10W | 37V/250mA | Ra>90 | 15° | 2700K | 5930CD | | | |
| 明装圆形筒灯 | EN26014-010 | 10W | 37V/250mA | Ra>90 | 15° | 3000K | 6242CD | | | |
| 明装圆形筒灯 | EN26014-010 | 10W | 37V/250mA | Ra>90 | 15° | 4000K | 6571CD | | | |
| 明装圆形筒灯 | EN26014-010 | 10W | 37V/250mA | Ra>90 | 30° | 2700K | 2929CD | | | |
| 明装圆形筒灯 | EN26014-010 | 10W | 37V/250mA | Ra>90 | 30° | 3000K | 3083CD | | | |
| 明装圆形筒灯 | EN26014-010 | 10W | 37V/250mA | Ra>90 | 30° | 4000K | 3246CD | | | |
| 明装圆形筒灯 | EN26014-010 | 10W | 37V/250mA | Ra>90 | 45° | 2700K | 1431CD | | | |
| 明装圆形筒灯 | EN26014-010 | 10W | 37V/250mA | Ra>90 | 45° | 3000K | 1506CD | | | |
| 明装圆形筒灯 | EN26014-010 | 10W | 37V/250mA | Ra>90 | 45° | 4000K | 1585CD | | | |
| 明装圆形筒灯 | EN26014-012 | 12W | 37V/300mA | Ra>90 | 15° | 2700K | 7745CD | | | |
| 明装圆形筒灯 | EN26014-012 | 12W | 37V/300mA | Ra>90 | 15° | 3000K | 8152CD | | | |
| 明装圆形筒灯 | EN26014-012 | 12W | 37V/300mA | Ra>90 | 15° | 4000K | 8581CD | | | |
| 明装圆形筒灯 | EN26014-012 | 12W | 37V/300mA | Ra>90 | 30° | 2700K | 3859CD | | | |
| 明装圆形筒灯 | EN26014-012 | 12W | 37V/300mA | Ra>90 | 30° | 3000K | 4062CD | | | |
| 明装圆形筒灯 | EN26014-012 | 12W | 37V/300mA | Ra>90 | 30° | 4000K | 4276CD | | | |
| 明装圆形筒灯 | EN26014-012 | 12W | 37V/300mA | Ra>90 | 45° | 2700K | 1719CD | | | |
| 明装圆形筒灯 | EN26014-012 | 12W | 37V/300mA | Ra>90 | 45° | 3000K | 1809CD | | | |
| 明装圆形筒灯 | EN26014-012 | 12W | 37V/300mA | Ra>90 | 45° | 4000K | 1905CD | | | |
